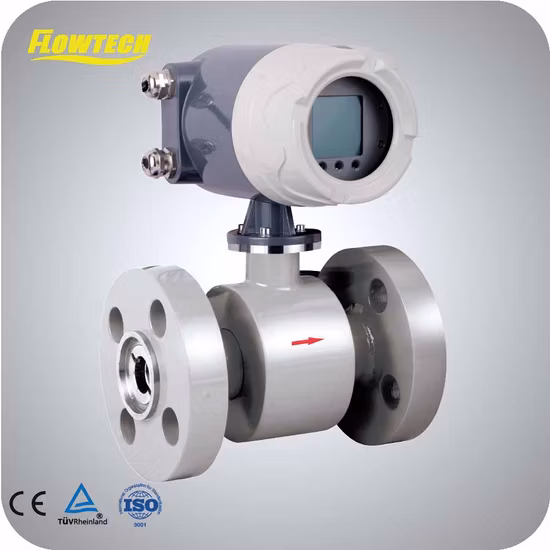

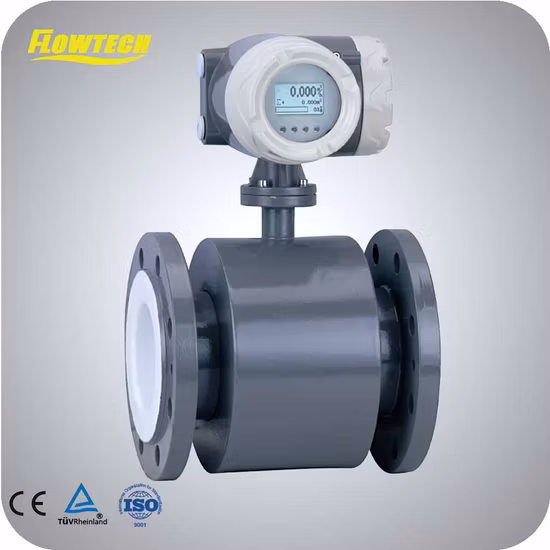

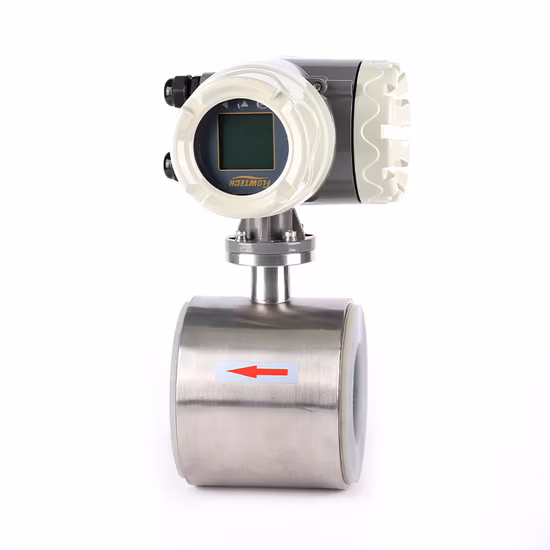

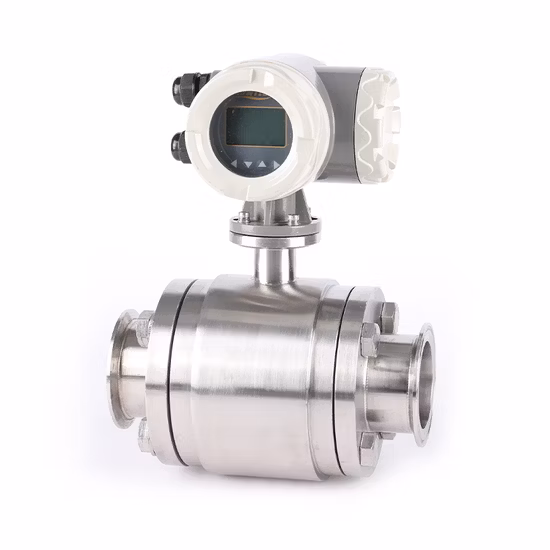

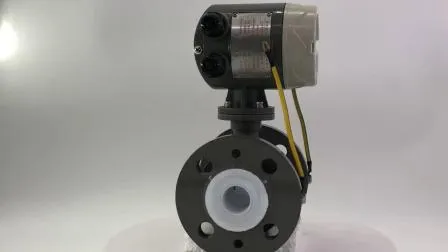

Magnetic Flow Meter Clamp Electromagnetic Flowmeter Modbus Water Flow Meter

Magnetic Flow Meter Clamp Electromagnetic Flowmeter Modbus Water Flow Meter

Magnetic Flow Meter Electromagnetic Flowmeter Electromagnetic flowmeterConductivity mediums like acid, alkali, juice, mi

Send your inquiry

DESCRIPTION

Basic Info
Model NO. KF700GA
Accuracy ±0.2-0.5%
Size DN100-500
Sensor Tube/Flange
Type Electromagnetic Flow Meter
Measuring Media Liquid
Measuring Principle Electrical Principles
DN10-DN2000 1/2inch-80inches
Flow Speed Range 0.3-12m/S
Working Pressure 0.6-4.0MPa
Environmental Temperature 0-55c
Transport Package Cartons/Wooden Box
Specification DN10-DN2000
Trademark FLOWTECH
Origin China
HS Code 902610000
Production Capacity 500PCS/Month
Product Description
Magnetic Flow Meter Electromagnetic FlowmeterElectromagnetic flowmeterConductivity mediums like acid, alkali, juice, milk, water, waste water, etcEconomic low cost digital flowmetersKF700 electroomagnetic flowmeter is an inductive apparatus to measure the flow volume of electric medium in the tube.The flowmeter composes of sensor and converter, the flowmeter design is adopted of SCM built-in technology to realize digital inciting magnetism the SCM connects CAN bus-mastering in the electromagnetic flowmeter at the same to time.The electromagnetic flowmeter can not only be read straightly but also output 4-20mA current signal for purpose ofmemory, adjustment and control, the flowmeter is extensively used in industry technology and administrationdepartment such as chemical industry, environmental protection, metallurgy, medicine, paper making and water supply, etc.Functional characteristics1The structure of flowmeter is simple, function is reliable because there are no transmission parts, the working lifetime is long.2 there are no block and cut-off parts, so the phenomenon of pressure loss and liquid block is not existed.3 there is no mechanical inertia, fast response, excellent stability, it can be applied on automatic inspection adjustment and program process system.4 the preciseness of measure is free of physical data influence of medium varieties, temperature, viscidity, density and pressure etc.5 the different configurations of both PTFE or rubber lining and electrical poles Hc, Hb, 316L, TI etc can satisfy different medium requirements.6 there are two models: Integration and separation7 high definition LCD displayerTechnical dataGauge preciseness: Pipe style 0.5 grade, 1.0 grade, insert style 2.5 gradeMeasure medium: Two kinds of flowing substances: All of liquids and liquid-solids whose electric conductance ratio is less than 5US/CMFlow speed range: 0.3-12m/sWorking pressure: 0.6-4.0MPaEnvironmental temperature: 0-55CMedium temperature: PTFE lining less than 150C, rubber lining less than 65CAnit-explosion signal: Exd IIBT4Electromagnetic interference: Less than 400A/mShell protection: Integration style: IP65, separation style: Sensor IP68, converter IP65Output signal: 4-20mA, loading resistance 0-750ΩTransmission output: RS485 or can bus-lineElectrical connection: M20*1.5 female thread, 10 cord holeElectrical power voltage: DC18-36V, AC85-265VMaximum power consumption: Less than 15WIn the normal industry application, it is better to set the measured medium speed as 2-4m/s, under the special situation, the minimum speed should be more than 0.2m/s and maxium speed less than 8m/s, if there are solid granules in liquid, the usual speed should be less than 3m/s for purpose to avoid the over-atrition between lining and electrical poles, for viscid liquid, the speed can choose as 2m/s, the fast flow speed makes for the automatic elimination of obstructive substance glued on poles, therefore improve the inspections preciseness.
Paratus selection
DNUsual full range flow volume selection(m3/h)Integration Partial installation
weights(KG) weights (KG)
100.16,0.2,0.25,0.3,0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.564
150.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.064
200.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.064
251.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.075
321.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0,20.0,25.097
402.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0,20.0,25.0,30.0,40.0108
504.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0,20.0,25.0,30.0,40.0,50,60,701210
65,6.0,8.0,10.0,12.0,14.0,16.0,20.0,25.0,30.0,40.0,50,60,80,100,1201715
8010.0,12.0,14.0,16.0,20.0,25.0,30.0,40.0,50,60,80,100,120,1601715
10016.0,20.0,25.0,30.0,40.0,50,60,80,100,120,160,200,2502220
12525.0,30.0,40.0,50,60,80,100,120,160,200,250,300,4002422
15040.0,50,60,80,100,120,160,200,250,300,400,500,6003533
20060,80,100,120,160,200,250,300,400,500,600,800,10004543
250100,120,160,200,250,300,400,500,600,800,1000,1200;16008482
300120,160,200,250,300,400,500,600,800,1000,1200;1600,2000,2500102100
350200,250,300,400,500,600,800,1000,1200;1600,2000,2500,3000123121
400250,300,400,500,600,800,1000,1200;1600,2000,2500,3000,4000147145
450300,400,500,600,800,1000,1200;1600,2000,2500,3000,4000,5000212210
500400,500,600,800,1000,1200;1600,2000,2500,3000,4000,5000,6000229207
600600,800,1000,1200;1600,2000,2500,3000,4000,5000,6000,10000252250
700800,1000,1200;1600,2000,2500,3000,4000,5000,6000,10000,12000352350
8001000,1200;1600,2000,2500,3000,4000,5000,6000,10000,12000,16000462460
9001200;1600,2000,2500,3000,4000,5000,6000,8000,10000,12000,16000 550
10001600,2000,2500,3000,4000,5000,6000,8000,10000,12000,16000;20000 680
